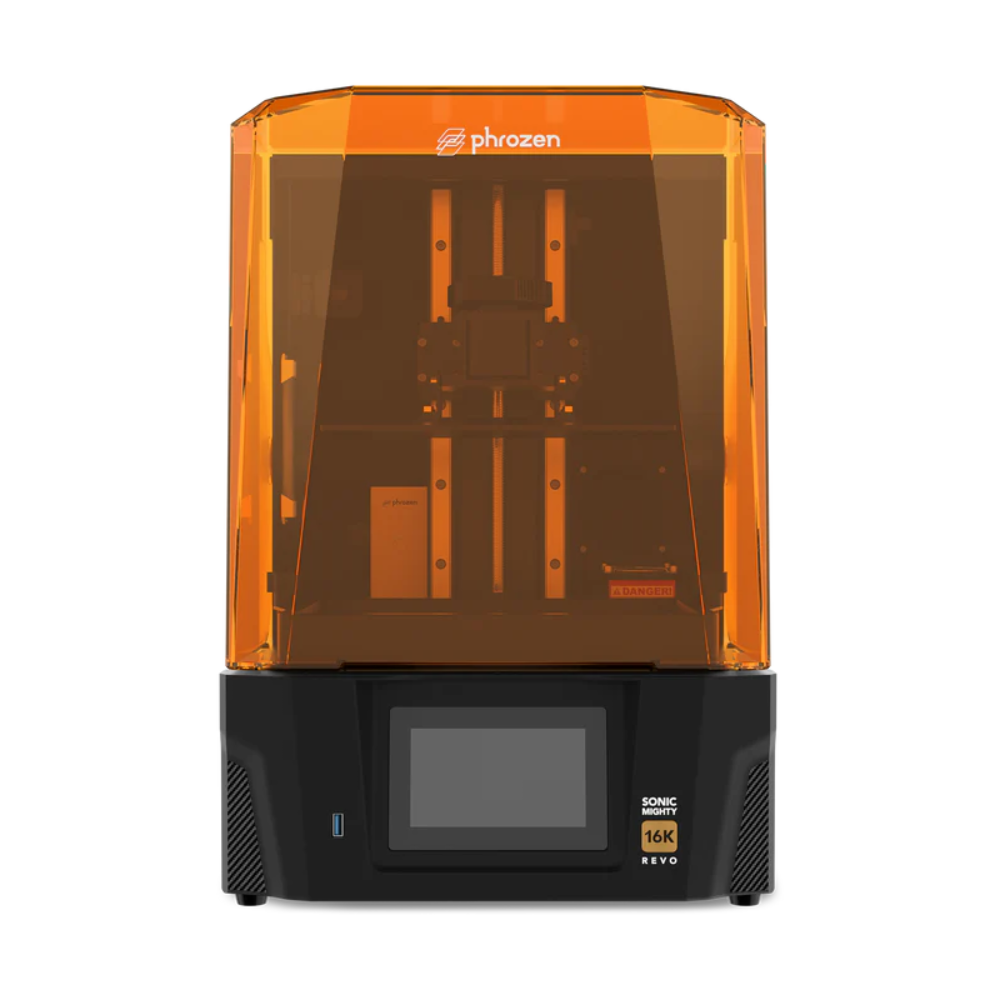

Phrozen Sonic Mighty Revo 16K
1.180,00€ ME ΦΠΑ
Ο Phrozen Sonic Mighty Revo 16K είναι ένας υψηλής ανάλυσης ρητινο-εκτυπωτής (MSLA/LCD) που συνδυάζει εξαιρετική λεπτομέρεια εκτύπωσης με επαγγελματικά χαρακτηριστικά και σταθερότητα, κάνοντάς τον κατάλληλο για εργαστήρια, παραγωγή μικρής κλίμακας και απαιτητικές χομπίστες.
- 10.1″ 16K Resolution
- Auto-Leveling
- Residue & Failure Detection
- Compatible with Phrozen Pump & Fill
Άμεση Διαθεσιμότητα!
Ο Phrozen Sonic Mighty Revo 16K είναι ένας υψηλής ανάλυσης ρητινο-εκτυπωτής (MSLA/LCD) που συνδυάζει εξαιρετική λεπτομέρεια εκτύπωσης με επαγγελματικά χαρακτηριστικά και σταθερότητα, κάνοντάς τον κατάλληλο για εργαστήρια, παραγωγή μικρής κλίμακας και απαιτητικές χομπίστες.
| Printing Technology | MSLA (LCD) |
| LCD | Mono LCD 10.1″ |
| XY Resolution | 14 × 19 μm (16K) |
| Light Source | 405 nm / COB + Fresnel Lens |
| Slicing Software | Chitubox |
| Connectivity | USB, Wi-Fi, Ethernet |
| Operating Screen | 5″ |
| Layer Thickness | 0.01-0.2 mm |
| Release Film | nFEP Film |
| Dimensional tolerance | XY Axis ±0.05 mm | Z Axis≤0.2mm |
| Build Volume | 211.68 x 118.37 x 235 mm |
| Printing Speed | Max. 676 Layers/hr |
| Rail | Dual Rails (Ball Screw) |
| Light intensity and light uniformity | 3900-5900 u≥75% |
| Printer Size | 353 x 345 x 517 mm |
| Printer Weight | 18 kg |
16K Resolution: Down to 0.02 mm Detail, Smooth Straight Off the Build Plate
From wing textures to facial expressions and armor engravings on 28 mm tabletop minis, details come out crisp so you spend less time post-processing. A 10.1-inch 16K LCD (15120 × 6230) pairs big-build capability with pinpoint precision throughout a 211.68 × 118.37 × 235 mm build volume.
2,000+ Hours of LCD Panel Life: Built for Heavy Use
The upgraded LCD delivers higher light transmission, better heat resistance, and improved uniformity for more consistent results print after print. With an average lifespan of 2,000+ hours. That’s roughly 8+ months of printing at 8 hours a day.
Print Smooth, Sand Less
Layer lines are fine enough to be virtually invisible at arm’s length. Prints come off the build plate looking clean and smooth with minimal post-processing. Even under close inspection, you’ll hardly see any layer lines.
14K vs. 16K: Smaller Pixels, Sharper Prints
Pixel size is reduced by about 36% (16.8 × 24.8 µm → 14 × 19 µm), delivering finer detail, smoother surfaces, and sharper edges on small-scale models.
Your Studio’s Guardian: Notifies You the Moment Something Goes Wrong
Built-in 30°C chamber heater plus a multipoint pressure-sensing sensor monitors the entire print so you can run prints with more confidence and catch issues early.
Aerospace-Grade Aluminum Frame: Built for Heavy Use with Rock-Solid Stability
Dual linear rails, a ball screw, and a rigid 6000-series aluminum frame work together to keep motion steady and layers consistent. Even on 12+ hour runs, the Z-axis stays exceptionally precise, so tall prints and heavier parts form cleanly layer by layer, with a reduced risk of layer shifting.
Steady Heater for More Reliable Prints
The built-in heater warms up to 30°C in about 30 minutes and holds a consistent temperature to help reduce print failures in colder spaces like garages or basements, especially during winter.
Circulating heat keeps temperature stable, helping every layer cure cleanly for flawless results.
Smart Sensors, Stress-Free Prints
Assisted Leveling
Quickly resolves calibration errors so you can go from unboxing to your first print in as little as 10 minutes.
Foreign Object Detection (≥ 4 mm)
If the sensors detect an object ≥ 4 mm on the LCD, the printer automatically pauses to help protect the release film.
Part Detachment Alert (15 Layers)
If peel force reads zero for 15 consecutive layers, you will get an instant notification.* *Triggered when the build plate is no longer submerged in resin.
Additional information
| Weight | 10 kg |
|---|
