The SE uses structured light technology to project a series of light patterns onto the object which distort to show the shape.
**For higher speed and accuracy scanning see the Einscan SP**
- Fast Scans: Complete individual scans in 8 seconds and full 360 scans in 2 minutes.
- Capture Fine Detail: Use structured light scanning technology to capture intricate details.
- Share Easily: One click file uploads

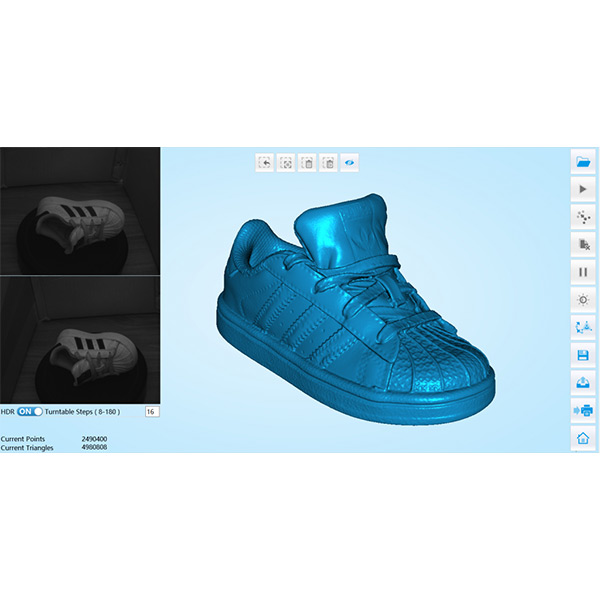

- Automated Software: Easily calibrate, scan, mesh and make watertight.

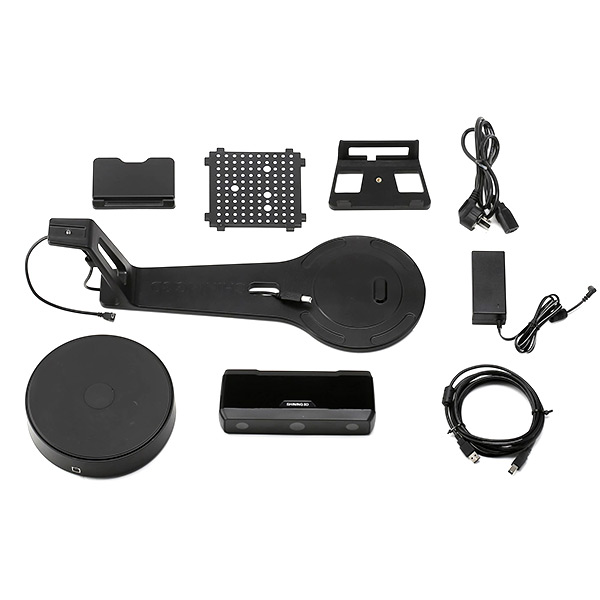

In the Box
- Power cable
- Calibration board
|Scan Mode||Two Modes Available – Fixed and Auto Scan|
|Mode of Alignment||Fixed Scan – Feature, Manual. Auto Scan – Turntable, Manual|
|Single Shot Accuracy||Less than or equal to 0.1mm|
|Minimum Scan Volume||30 x 30 x 30mm|
|Maximum Scan Volume||Fixed Scan – 700 x 700 x 700mm. Auto Scan – 200 x 200 x 200mm|
|Range of Single Capture||200 x 150mm|
|Scan Speed||Fixed Scan – Less than 8s. Auto Scan – Less than 2 min.|
|Point Distance||0.17mm – 0.2mm|
|File Format||OBJ, STL, ASC, PLY|
|Camera Resolution||1.3 Mega Pixels|
