Μόλις ανακοινώθηκε ολοκαίνουρια Draft V2 ρητίνη για τους διάσημους Formlabs SLA 3D printers, εξαιρετική για ορθοδοντικά μοντέλα καθώς συνδυάζει ακρίβεια μαζί με πολύ μεγάλη παραγωγικότητα!

Πρόκειται για την γρηγορότερη ρητίνη της Formlabs, εως 4 φορές πιο γρήγορη από την standard grey!  Eιδικά σχεδιασμένη για ορθοδοντική χρήση μπορεί να βγάλει 1 εκμαγείο σε ως και κάτω από 20 λεπτά και 8 εκμαγεία σε περίπου 1 ώρα και 15 λεπτά!

Ως τώρα οι Form 2 και Form 3 ήταν οι πιο διαδεδομένοι και ποιοτικοί/αξιόπιστοι εκτυπωτές στην κατηγορία τους με τεράστια γκάμα υλικών και ευκολία χρήσης με εξαιρετική ποιότητα εκτύπωσης και λείο φινίρισμα λόγω του laser, πλέον είναι και ταχύτατοι!

Formlabs Dental is pleased to announce a new iteration of Draft Resin, a cutting-edge material designed to print accurate orthodontic models up to four times faster than before on theForm3, Form 3B, Form 3BL, and the Form 2.

Draft Resin is our fastest printing material ever, capable of printing a dental model in under 20 minutes. This highly accurate resin prints with a smooth surface finish, making Draft Resin the ideal material for aligner and retainer production.

The new resin puts Formlabs Dental LFS 3D printers in the same league as the fastest dental 3D printers on the market that often cost 3-10 times more, while offering larger build volumes and more versatility for indications that require higher resolution.

Provide the best patient experience by delivering precise fitting dental appliances quickly, without breaking the bank.

Print a Single Arch in Under 20 Minutes

The Form 3B and Form 3BL are proven as accurate and reliable dental 3D printers. With Draft Resin, your Formlabs printer can be fast, too.

Draft Resin prints up to four times faster than Grey Resin, our previous go-to material for orthodontic models, now allowing you to print a single arch in under 20 minutes or eight models in one hour 15 minutes.

Grey Resin
100 microns
Draft Resin
200 microns
Single arch 71 min 18 min
Eight models 9 hr 48 min 1 hr 15 min



Draft Resin is available in two layer height settings, 200 microns and 100 microns. Use 200 micron settings for fastest print speeds and same day appliances or use 100 micron settings for more detailed or vertically oriented models.

When you aim to maximize throughput and limit operator interactions, use vertical orientation and 100 micron settings to print up to 18 models in 5.5 hours on the Form 3B or fit up to 52 models in a single Form 3BL build.

Productivity on the Form 3/3B

ORTHODONTIC MODELS DIRECT TO BUILD PLATFORM

Build platform with draft dental parts


Draft Resin at 200 µm

Up to 9 models per print in ~1.25 hrs or 1 model in ~20 min for $2-3 per model

Draft Resin at 100 µm

Up to 9 models per print in ~2.5 hrs for $2-3 per model



ORTHODONTIC MODELS NEAR VERTICAL



Build platform with draft dental parts


Draft Resin at 100 µm

Up to 18 models per print in ~5.5 hrs for $2-3 per model

Productivity on the Form 3BL

ORTHODONTIC MODELS DIRECT TO BUILD PLATFORM

Build platform with draft dental parts


Draft Resin at 200 µm

Up to 24 models per print in ~2.5 hrs for $2-3 per model

Draft Resin at 100 µm

Up to 24 models per print for $2-3 per model. Print settings coming soon



ORTHODONTIC MODELS NEAR VERTICAL

Build platform with draft dental parts


Draft Resin at 100 µm

Up to 52 models per print for $2-3 per model. Print settings coming soon

High Accuracy, Even Printing at Speed

There’s no need to sacrifice quality for faster print speed. Draft Resin, even printing at speed, produces highly accurate orthodontic models.

Printed at 200 microns, 98% of surfaces are within 100 microns of actual scans. In context, even though it’s using a higher layer thickness, the new material provides better accuracy than our formerly fastest material and setting indicated for orthodontic models, Grey Resin at 160 microns, which delivered 93% accuracy of surfaces within 100 microns.

Thanks to this combination of high speed and high accuracy, Draft Resin is now the recommended material for orthodontic models used to produce retainers and thermoformed clear aligners.

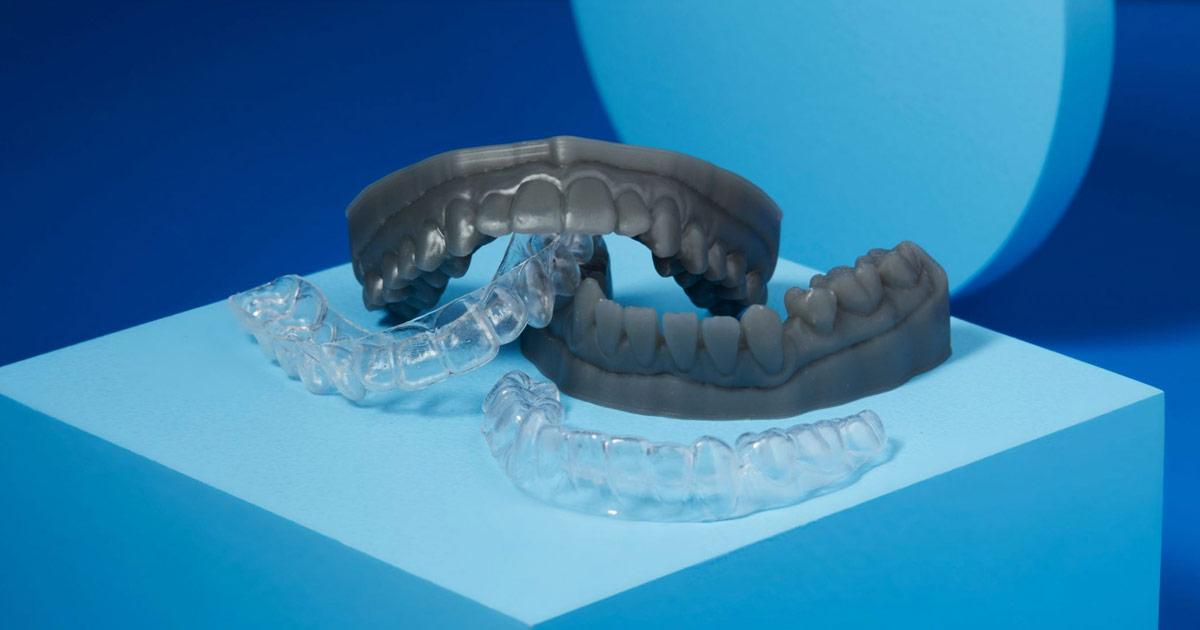

A retainer thermoformed on an orthodontic model printed in Draft Resin at 200 micron settings. The layers are barely visible even with the higher layer thickness, resulting in a beautiful, high-quality appliance with an intimate fit. As a reference, the largest aligner manufacturer in the world also prints thermoforming models at 200 microns.

Orthodontic Solutions Chairside and With Same-Day Delivery

Draft Resin is a groundbreaking material for rapid orthodontic aligner and retainer production, opening up chairside and same-day delivery.

With Draft Resin, the Form 3B and the Form 3BL are the perfect choices for any orthodontic practice or lab looking to bring aligner and retainer production in house.

Labs will appreciate the production workflow that is designed to minimize labor costs and the massive throughput. Print over 64 models per working day with a single Form 3B (up to 72 in 24 hours when printing also overnight), or invest in the large format Form 3BL to print over 120 models per day with just a few interactions and manufacture accurate and beautiful orthodontic appliances in-house comparable to those from industry leaders.

Practices can now create a single aligner or print a big batch of models faster than ever before, with a workflow designed to minimize time at the printer and maximize time with patients. Print a single model in under 20 minutes to create an aligner within the same appointment or print up to 8 models per build platform with the Form 3B in 85 minutes for a total daily potential production of over 70 models.

Επικοινωνήστε μαζί μας για τεχνικές λεπτομέρειες και οποιαδήποτε άλλη πληροφορία γύρω από τους Formlabs Form 3 Form 3B, Form 3L και Form 3LB 3D Printers τους πιο πλήρεις εκτυπωτές για dental, medical και όχι μόνο χρήση, των οποίων είμαστε η επίσημη αντιπροσωπεία Ελλάδα και Κύπρο και πιστοποιημένο service/support!

Eπισκευτείτε το εργαστήριό μας για δείγματα εκτύπωσης και για να τους δείτε να δουλεύουν και να απαντήσουμε κάθε σας ερώτηση.
