Einscan HX 3D Scanner

14.900,00 ME ΦΠΑ

Availability: In Stock

Einscan HX – Ολοκαίνουριο υβριδικό φορητό 3D Scanner, το πρώτο που συνδυάζει 2 τεχνολογίες:

  • structure light με μπλε φως για εύκολη και γρήγορη σάρωση μοντέλων με πολλά features, χωρίς χρήση markers και με πολύ καλή ακρίβεια
  • laser scanning για εξαιρετική ακρίβεια και σάρωση σκούρων και ανακλαστικών επιφανειών που αποτελούν πρόβλημα για το structure light, απαιτεί markers

Ο ιδανικός σαρωτής για μεικτή μηχανολογική χρήση, automotive projects και οποιαδήποτε άλλη χρήση μόνο ένας σαρωτής θα ήταν περιοριστικός.

Περιλαμβάνει πλήρη άδεια του Geomagic Essentials και του Siemens Solid Edge 2020 για Reverse Engineering!

Διαθεσιμότητα σε 2-3 εβδομάδες με σειρά προτεραιότητας

Category:

Hybrid Blue Laser & LED Light Source Handheld 3D Scanner

Based on years of 3D measurement experience and market demand, SHINING 3D innovatively integrates blue LED light and blue laser into EinScan HX handheld 3D scanner. The hybrid laser and LED light sources make EinScan HX compatible with a wider range of object sizes, meeting multiple needs of users. High efficiency and reliable result give EinScan HX more application possibilities.

Hybrid Blue Laser & LED Light

Innovatively integrated with dual blue LED light and blue laser, improves scanning materials adaptability with less limitation for a wider range of applications. LED light scanning allows rapid 3D scanning. Laser scanning, which is less sensitive to ambient light, gives better performance to reflective and dark color surface.

Reliable Results

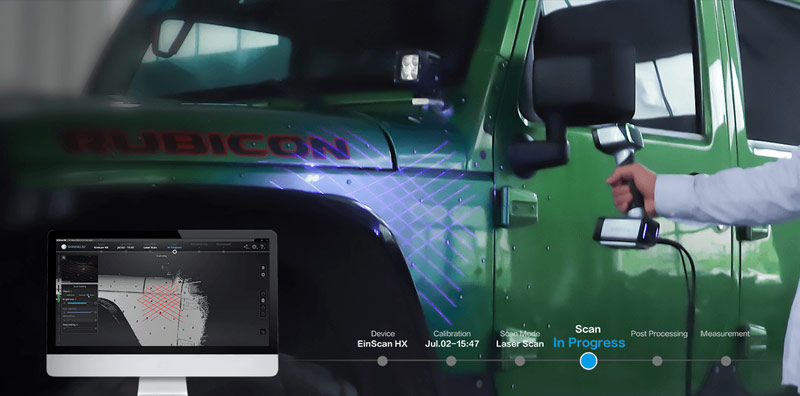

Einscan HX Hybrid Handheld 3D Scanner 3DHUB.gr

The high resolution and accuracy meet the needs of most industrial applications for reverse engineering and measuring.

Minimum point distance 0.05 mm

Accuracy up to 0.04 mm under Laser Scan



High Efficiency

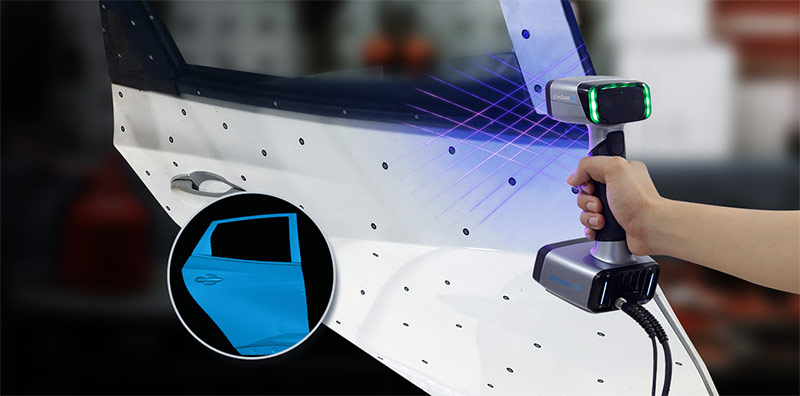

Einscan HX Hybrid Handheld 3D Scanner 3DHUB.gr

Processing speed of EinScan HX under Rapid Scan Mode is up to 1,200,000 points/s, and multiple blue laser lines under Laser Scan Mode makes scanning of most objects in minutes for reverse engineering, CAD/CAM, 3D printing and etc.



Portable & Easy Operation

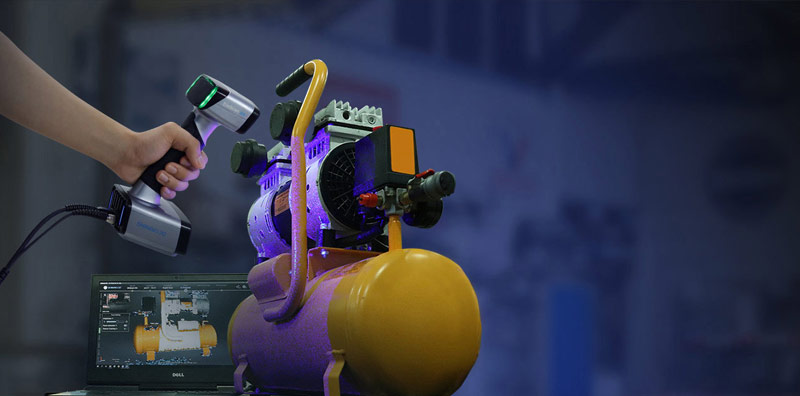

Einscan HX Hybrid Handheld 3D Scanner 3DHUB.gr

EinScan HX is plug and play with user friendly software, which is easy to operate, no matter you are newbie or with professional experience in 3D scanning. The portability and flexibility use of EinScan HX has been considered to its ergonomic design for a more efficient and comfortable scanning experience.

Ergonomic Design

Weight:710g



Full Color

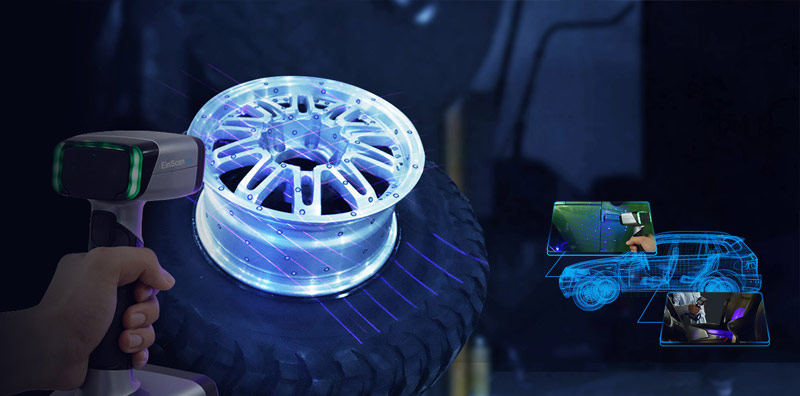

Einscan HX Hybrid Handheld 3D Scanner 3DHUB.gr

With built-in color camera, it supports

full color texture capturing and tracking by texture.

EinScan HX Reverse Engineering Design Bundle

Einscan HX Hybrid Handheld 3D Scanner 3DHUB.gr

A hybrid light source 3D scanner with reverse engineering and CAD capabilities.

Includes full licence for Geomagic Essentials and Siemens Solid Edge!



Scan Mode Rapid Scan Laser Scan
Scan Accuracy Up to 0.05mm Up to 0.04mm
Volumetric Accuracy* 0.05+0.1mm/m 0.04+0.06mm/m
Scan Speed 1,200,000 points/s
20FPS
480,000 points/s55FPS
Camera Frame Rate 55FPS 55FPS
Align Mode Feature Alignment、Markers Alignment、Texture Alignment、Hybrid Alignment Markers Alignment
Working Distance 470mm 470mm
Depth of Field 200mm-700mm 350mm-610mm
Max FOV 420mm*440mm 380mm*400mm
Point Distance 0.25mm-3mm 0.05mm-3mm
Light Source Blue LED 7 Blue Laser Crosses
Safety Eye-safe Class I(Eye-safe)
Built-in Color Camera Yes
Texture Scan Yes No
Connection Standard USB3.0
Output Formats OBJ;STL;ASC;PLY;P3;3MF
Dimensions 108mmx110mmx237mm
Weight 710g
Certifications CE,FCC,ROHS,WEEE,KC
Recommended Configuration OS:Win10,64 bit;Graphics card:NVIDIA GTX1080 and higher;Video memory:≥4G;Processor:I7-8700;Memory:≥32GB

* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm(rapid scan)/0.06mm(laser scan) per 100cm.The conclusion is obtained by measuring the center of sphere under marker alignment.



Showcase



Wheel Hub by SHINING 3D on Sketchfab



Car Fender by SHINING 3D on Sketchfab



Car Door by SHINING 3D on Sketchfab



Compressor by SHINING 3D on Sketchfab
