POWERFUL WATER JET CUTTING AT A FRACTION OF THE COST

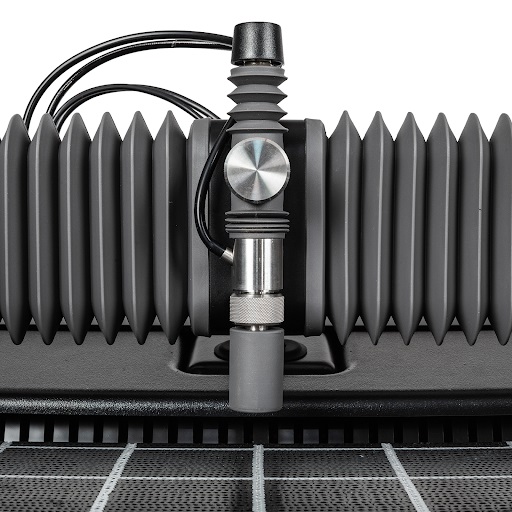

WAZER uses a digitally-controlled high-velocity jet to precisely cut any material for any size workshop, all at cost-effective pricing.
HOW WAZER WORKS
Go from your design to waterjet cutting, fast and easy.
Upload Your Design
Prepare your design for waterjet cutting with our free, web-based software.

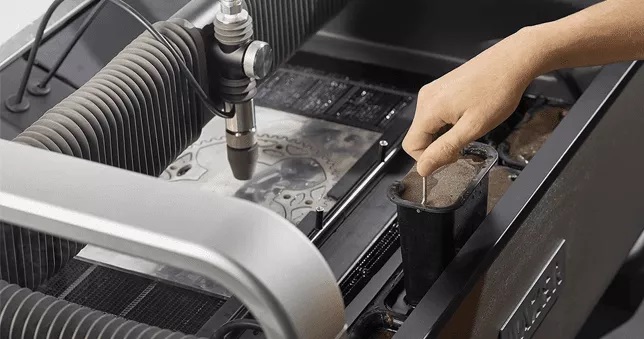

Load Your Material
Load any material that fits inside the water jet machine and fasten it in place.

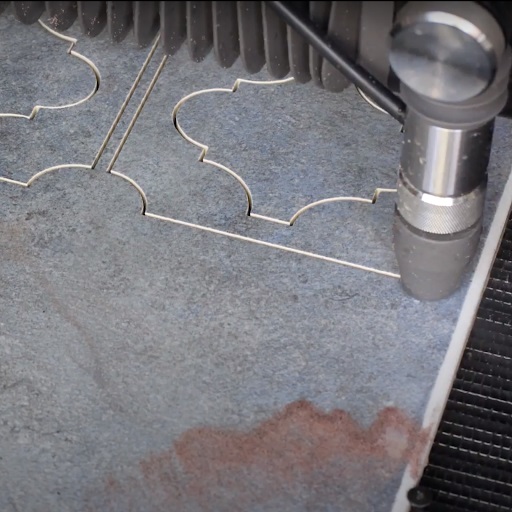

Cut Your Part
Transfer your cut file to WAZER with an SD card, and let the water jet take it from there to create your cut pieces.
Key Features of WAZER:
- Advanced waterjet technology produces precise results
- Cuts an Extensive Variety of Materials
- Specially Designed Compact Footprint
- Easy and Safe to Use
- Quick Learning Curve
- Utilizes Cold Cutting Process
The Waterjet That Fits Your Workspace and Budget! WAZER makes a splash on waterjet size and pricing so you can utilize a compact, quality waterjet cutting machine in your workshop.
- Avoid spending upwards of $100,000 on typical waterjets
- No industrial infrastructure required for use
- Store WAZER in any size workspace
- Can sit on workbench or be freestanding with Stand Leg accessory
- Cut Any Material with a Single Machine
- Expand the number of applications and projects you can create thanks to the portfolio of materials WAZER alone can cut through.
- Cuts metal, ceramic, plastic, rubber, carbon fiber, and more
- Cut Rates provided to achieve optimal production settings
- Use one machine to cut any type of pieces needed for a variety of projects
- Experience Professional-Grade Waterjet Manufacturing
WAZER takes the anatomy of industrial waterjet machines and optimizes it into a compact form that continues to deliver professional-grade results, now accessible on a consumer base level.
Produces 0.003” digitally precise cuts with smooth finishes. Uses a cold cutting process to avoid heat-induced material warping
Enclosure and emergency stop features included for a safe, easy-to-maintain production experience. Switch from Outsourcing to On-Demand Production
 Aluminum
|
 Stainless Steel
|
 Titanium
|
 Brass
|
 Copper
|
 Ceramic Tile
|
 Marble
|
 Granite
|
 Porcelain Tile
|
 Borosilicate
|
 Fused Glass
|
 Stained Glass
|
 Polyurethane
|
 Carbon Fiber
|
 Silicone
|
 Polyethylene
|
 Memory Foam
|
 HDPE
|
WAZER’s operation costs are as low as an estimated $0.15/minute*, making on-demand production a no-brainer for your time and budget-sensitive application needs.
- Reduce turnaround for prototypes down from weeks to days
- Save big on productions costs for one-off/low volume batches
FEATURES
Domestic Use
All you need to get going is a standard power source and a decent water source (garden hose etc.)
Quality
The Wazer can create high-quality, intricate cuts on a variety of materials and material thicknesses.
Cost
The Wazer is cheaper to purchase and maintain when compared to other CNC machines and laser cutters that can produce parts of a similar quality.

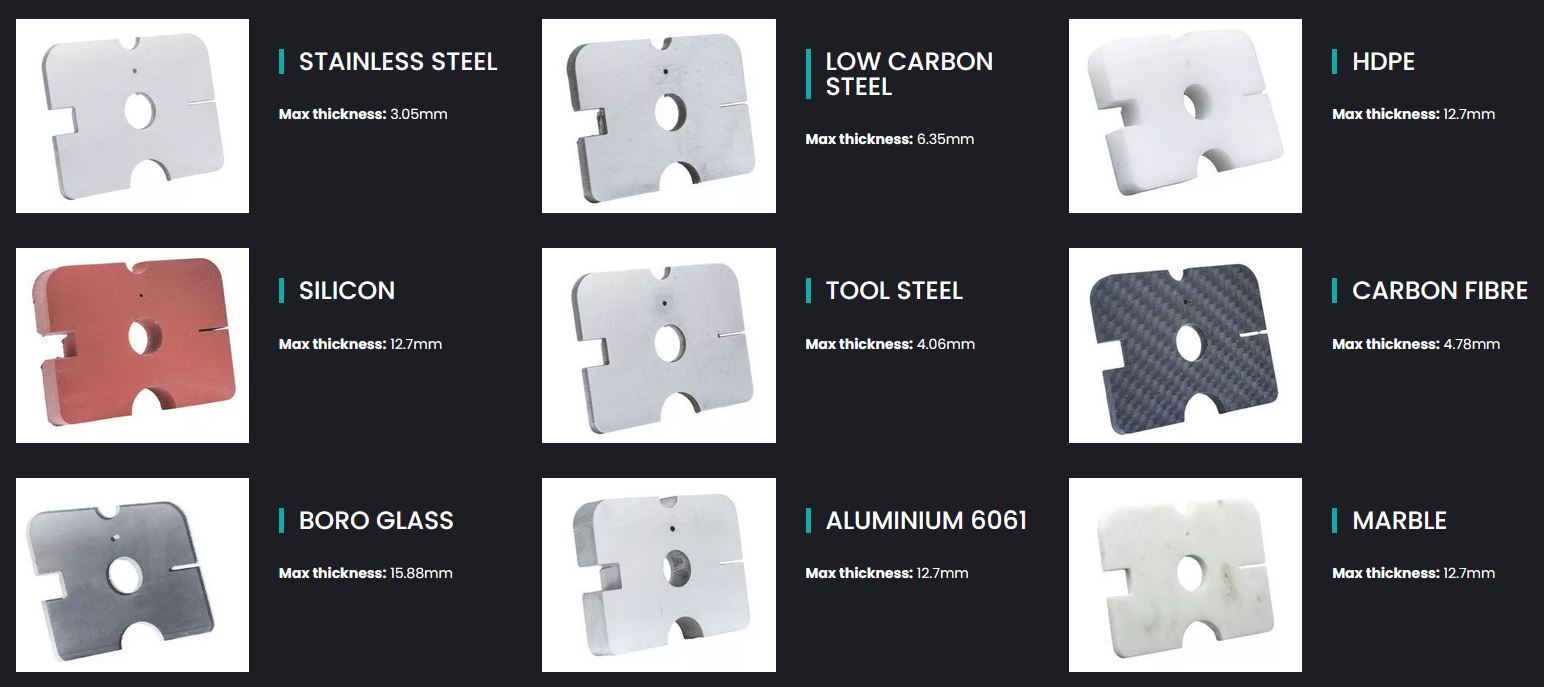

MATERIAL CAPABILITIES
WAZERs work wherever you do
|
|
|
|
Our WAM software turns your designs into WAZER cutting instructions. Just load your CAD design, select from the menu options, and start cutting.
From Design to Cutting, Fast
Import Design File
Use any CAD or graphic design software. Save your design as a .dxf or .svg file and import into WAM.
Select Project Settings
Scale, rotate, and position your design. Select your material and choose a cut quality: coarse, medium or fine.
Transfer File to WAZER
Save your .gcode “Cut File” and transfer it to the WAZER machine with an SD Card.
WAZER Tech Specs
| Top Specs | Cutting Area (D x W) | 12 x 18 in 305 x 460 mm |
|---|---|---|
| Kerf (width of cut) | 0.044 in 1.2 mm |
|
| Abrasive Rate | 0.33 lb/min 0.15 kg/min |
|
| Power Requirement | 110V / 60Hz (North America) 220V / 50Hz (International) |
|
| Cutting Speed | Depends on Material and Thickness. View all cutting speeds. | |
| Maximum Cutting Thickness | Varies by Material. View the maximum cutting thickness for each material. | |
| Warranty Period | 1 year. View Limited Warranty details. |
| Cutting Specs | Cutting Area (D x W) | 12 x 18 in 305 x 460 mm |
|---|---|---|
| Cut Bed Size (D x W) | 13 x 19 in 330 x 485 mm |
|
| Kerf (width of cut) | 0.044 in 1.2 mm |
|
| Cutting Materials | Cuts metal, glass, plastic, composites, tile, rubber, foam | |
| Cutting Speed | Depends on Material and Thickness. View all cutting speeds. | |
| Maximum Cutting Thickness | Varies by Material. View the maximum cutting thickness for each material. | |
| Continuous Cutting Time | 60 min (prior to refilling the abrasive hopper) | |
| Gantry Max Speed | 59 IPM 1,500 mm/min |
|
| Gantry Positional Accuracy | 0.003 in 0.08 mm |
| Abrasive Specs | Abrasive Rate | 0.33 lb/min 0.15 kg/min |
|---|---|---|
| Abrasive Hopper Capacity | 30 lb 13.5 kg |
|
| Abrasive Material | 80 Mesh Alluvial Garnet |
| Power Specs | 110V / 60Hz WAZER (North America) | Compatible with all countries whose electrical standard is 110V / 60Hz |
|---|---|---|
| Waterjet Main Unit | 100-240 VAC, 50/60Hz, 2A, 200W | |
| Pump Box | 110-120 VAC, 60Hz, 14A, 1,500W | |
| 220V / 50Hz WAZER (International) | Compatible with all countries whose electrical standard is 220V / 50Hz | |
| Waterjet Main Unit | 100-240 VAC, 50/60Hz, 2A, 200W | |
| Pump Box | 220-240 VAC, 50Hz, 7.5A, 1,500W |
| High Pressure Water Specs |
Maximum Allowable Working Pressure |
4,600 psi 317 bar |
|---|---|---|
| Maximum Working Flow Rate (at 4,000 psi) |
0.5 GPM 1.9 L/min |
|
| Orifice Diameter | 0.019 in 0.48 mm |
|
| Orifice Material | Ruby or Sapphire | |
| Mixing Tube Diameter (internal) | 0.045 in 1.1 mm |
| Input Water Specs | Water Source | Filtered Tap Water |
|---|---|---|
| Input Water Filter | 300 mesh | |
| Input Water Pressure (minimum) |
35 psi 2.4 bar |
|
| Input Water Flow Rate (minimum) |
1 GPM 3.8 L/min |
|
| Input Water Hardness (maximum TDS) |
180 ppm 180 mg/L |
|
| Input Water Temperature (maximum) |
130 °F 54 °C |
| Water Drainage Specs | Water Drain Distance from Waterjet (maximum) | 30 ft 9 m |
|---|---|---|
| Water Drain Height above Waterjet (maximum) | 4 ft 1.2 m |
|
| Water Drainage Flow Rate (maximum) |
1.5 GPM 5.7 L/min |
|
| Water Recirculation | Not Recommended |
| Software Specs | System Requirements | Internet connection required (for software only) |
|---|---|---|
| Browser Compatibility | Chrome, Safari, Edge, Explorer, Firefox | |
| Compatible Input Design File Types | .dxf, .svg | |
| Output Cut File Type | .gcode | |
| Connectivity to WAZER Waterjet | SD Card | |
| Cost | Free |
| Misc Specs | Waterjet Main Unit Size (Desktop) | 34 x 26 x 22 in 856 x 648 x 551 mm |
|---|---|---|
| Waterjet Main Unit Size (Standup) | 34 x 26 x 48 in 856 x 648 x 1220 mm |
|
| Pump Box Size | 21 x 15 x 10 in 533 x 379 x 251 mm |
|
| Waterjet Main Unit Weight (empty tank) |
110 lb 50 kg |
|
| Waterjet Main Unit Weight (filled tank) |
400 lb 180 kg |
|
| Pump Box Weight | 92 lb 42 kg |
|
| Connectivity | Offline. No internet required to run the Waterjet. | |
| Noise Emission | 74 +/- 3dB | |
| Noise Pressure Level | 87 +/- 3dB | |
| Room Temperature (operating) | 32 – 160 °F 0 – 70 °C |
|
| Room Temperature (storage) | 32 – 104 °F 0 – 40 °C |
|
| Warranty Period | 1 year. View Limited Warranty details. |
| Maintenance Procedures | Short-Term Maintenance | Interval: 20–100 hrs of cutting. View Short-Term Maintenance Procedures |
|---|---|---|
| Medium-Term Maintenance | Interval: 300 hrs of cutting. View Medium-Term Maintenance Procedures |
|
| Long-Term Maintenance | Interval: 1,000 hrs of cutting. View Long-Term Maintenance Procedures |
