Einscan Trak
8.699,00€ ME ΦΠΑ
EinScan Trak is a wireless, marker-free 3D tracking system that combines an external tracker and a detachable handheld laser scanner in one kit — scan medium-to-large objects fast in Tracking Mode, then detach the scanner for confined spaces and small parts. No markers on the object, even across large, low-feature surfaces.
Η 3DHUB Greece είναι επίσημος Shining3D διανομέας Ελλάδα/Κύπρο/Βαλκάνια, πιστοποιημένο service και Certified EinScan Expert!
Παραλαβή σε 7-10 ημέρες

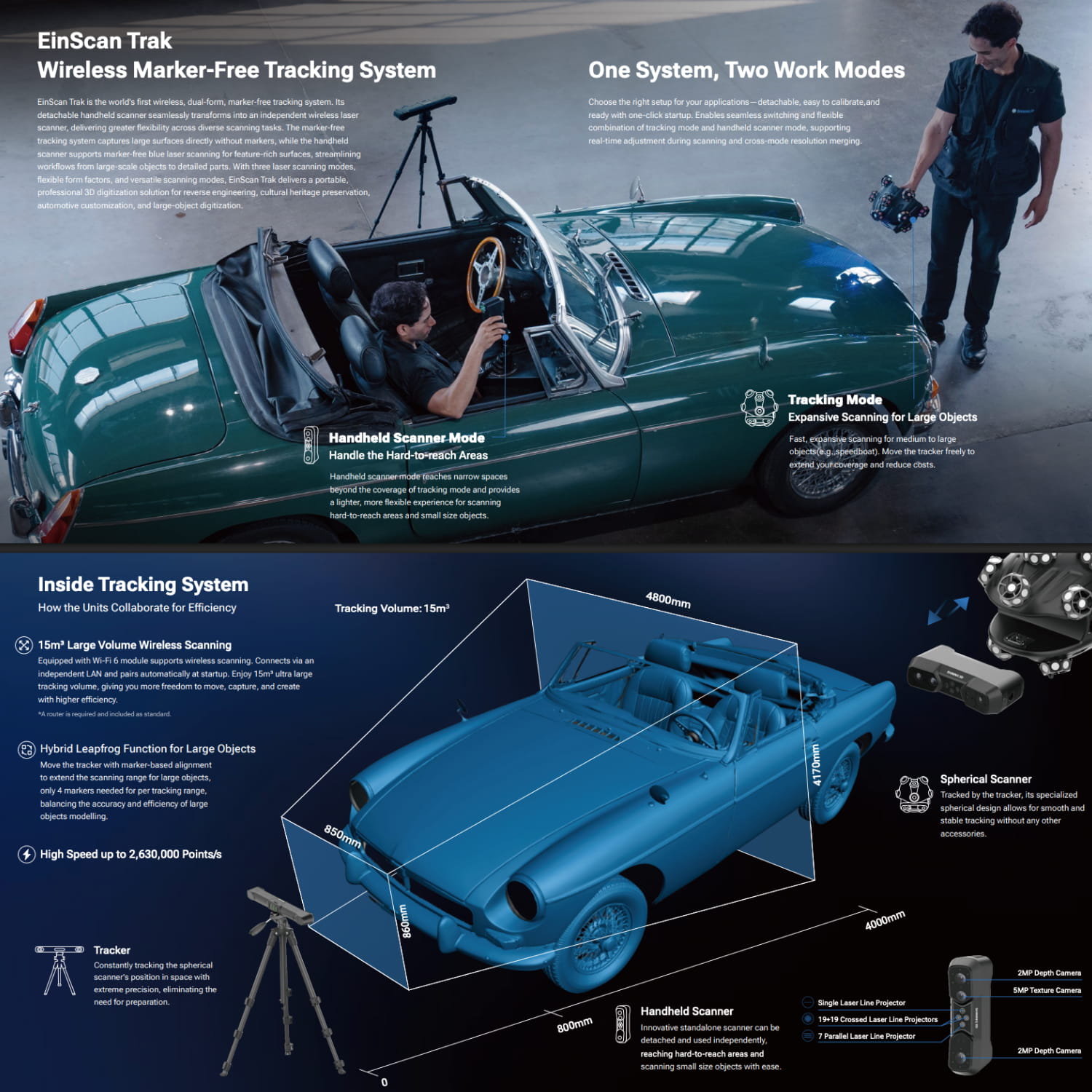

Wireless Freedom, Higher Efficiency
Equipped with Wi-Fi 6 module supports wireless scanning. Connects via an independent LAN and pairs automatically at startup. Enjoy 15m³ ultra-large tracking volume, giving you more freedom to move, capture, and create with higher efficiency.
*A router is required and included as standard.
All-Scenario Marker-Free 3D Scanning
Marker-Free Tracking System: EinScan Trak features built-in retroreflective markers on its spherical scanner module, enabling the wireless tracker to precisely monitor the scanner’s position in real time.
Marker-Free Laser Scanning in Handheld Scanner Mode: For feature-rich surfaces, handheld scanner mode delivers
a smooth, marker-free scan experience.
Three Scanning Modes for Diverse Needs
19+19 crossed laser lines acquire high-quality data from large objects quickly, delivering workflow efficiency and scanning flexibility.
7 parallel laser lines capture lines and sharp edges on automotive components with greater clarity.
Single laser line reaches deeper to capture fine details with 1:4 diameter- depth ratio, supporting applications such as vehicle reverse engineering.
Adaptable to Every Task
- Ideal for Various Materials
Scan black and reflective surfaces (e.g., car rims) effortlessly without any data loss. - Multi-Environment AdaptabilityReliable scanning outdoor & indoor, supports scanning under strong outdoor light up to 110,000 lux.
High-definition. True-color.
5MP HD texture scanning accurately captures object colors and material details. It breaks the stereotype that laser tracking 3D scanning lacks color, bringing the efficiency of tracking systems to cultural heritage, research, and other fields.
For Streamlined Reverse Engineering
EXModel Series is a powerful gateway that simplifies CAD modeling, from 3D scanning to manufacturing. It provides a comprehensive set of tools that enable you to transform a mesh into a professional-quality CAD solid model in just a few simple steps
For Precise Measurement
Technical Data
- Volumetric accuracy Up to 0.1 mm
- High-speed scan Included (19 + 19 crossed laser lines)
- Detailed scan Included (7 parallel laser lines)
- Deep pockets scan Included (single line)
- Resolution 0.05 ~ 10 mm
- Scan Speed 2,630,000 points/s
- Max. FOV Tracking mode: 4796 x 4174 mm @4000mm
Handheld scanner mode: 547 x 463 mm @500mm - Net weight Tracker: 1.02 kg
Spherical scanner: 1.46 kg
Handheld scanner: 0.48 kg - Certifications CE, FCC, ROHS, WEEE, FDA, SRRC, IP50
